RBI Hammer Specifications

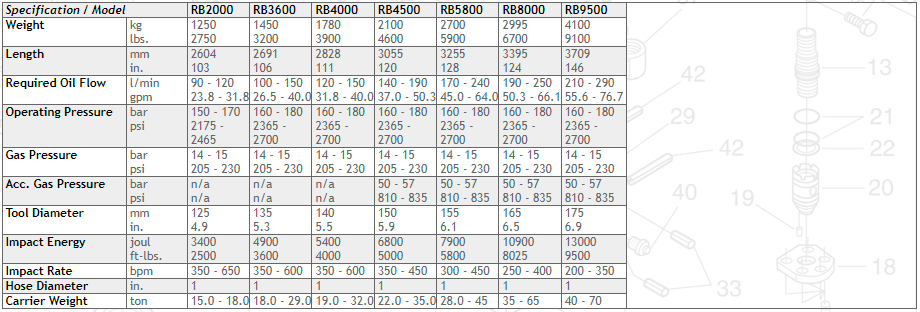

SPEC-1
SPEC-2

Remarks:

  • All specifications listed are subject to change without notice.
  • Where specifications are critical to your application, please consult RBI.

Huskie Hydraulic Hammer Specifications

SPEC-3

Remarks:

  • The hammer is to be used within the specified oil pressure, oil flow and gas pressure parameters.
  • The carrier hydraulic system relief pressure is to be set at 600 to 800 psi above the hammer “Operating Pressure.”
  • Hydraulic pressure is to be measured at the hose end of the carrier (output or pressure hose) when disconnected from the hammer.

Huskie Hydraulic Hammer Performance

SPEC-4

* Not an appropriate application
The data presented here is given as reference only for general production characteristics. Job and carrier conditions, operator experience and material strength may affect actual hammer output.

Sizing RBI Breakers Based on Carrier Weight

Specification Tables 8
